- Drive DeVilbiss Compact - 10 Litre Oxygen Concentrator is designed to provide optimal oxygen delivery for patients with varying flow requirements of up to 10L/min. Built in the USA and designed with a small footprint and light weight for ease of manoeuvrability.
 Reference : 1025UK
The devilbiss 10 litre oxygen concentrator has been developed to offer optimal oxygen therapy for those requiring varying flow rates. It utilises the latest advancements in oxygen therapy and is compatible to be used with cylinder transfill systems. With a weight of 42 lbs. and an identical footprint to the 525 unit, the 1025 is substantially smaller and lighter than competitive 10 Liter concentrators.

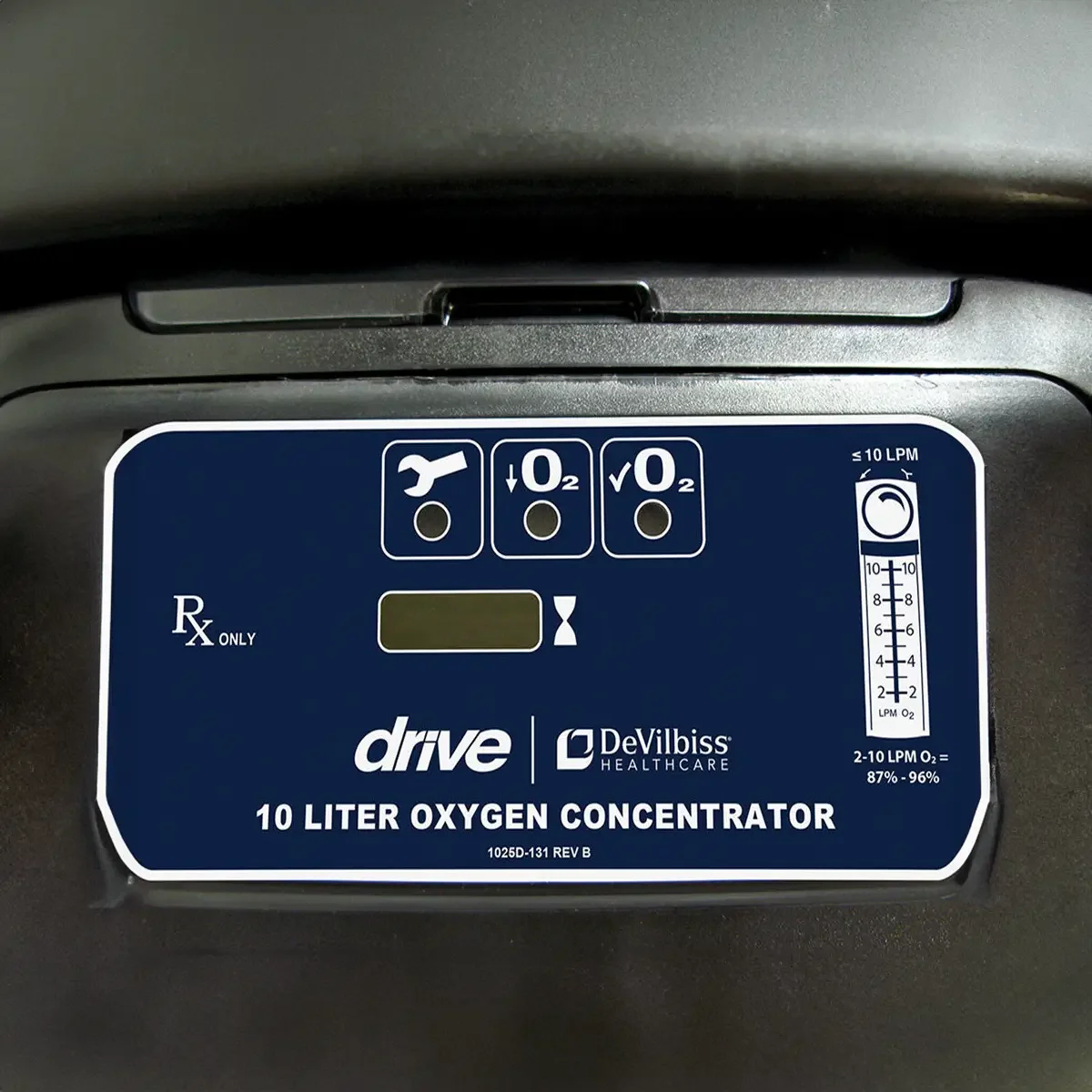

Capable of delivering 87% to 96% of O2 purity from 2 to 10 LPM, the 10 Litre Concentrator is an ideal investment for your patients and business alike. Exclusive DeVilbiss OSD® (Oxygen Sensing Device), standard on every unit, monitors the oxygen produced and ensures patient safety and reliability for longer service intervals. Equipped with accessible patient controls, bright LEDs that can be seen from a distance, protected cannula fitting and recessed humidifier nook to prevent damage
- Warranty information can be found in the manual of the product, and here you will also find recommended information regarding servicing. 3 Year via manufacturer (contact 0845 0600 333)
APPLICATIONS
- High Oxygen concentration levels over the whole flow range
- Variable Flow rate up to 10 l/min
- OSD Sensor for continuously monitoring Oxygen levels
- Take away bubble humidifier for placing in house where needed
- Service and maintenance friendly
- Data output socket for PC / Smart-Track™ remote for diagnostic analysis of the unit
- New maintenance free innovative rotary valve
- Intelligent power management system utilises turn-down® technology providing less power consumption when using flowrates of below 2 l/min
- Easy to operate, robust design
- Moulded handgrip for easy transportation and free moveable roller base for maximum manoeuvrability

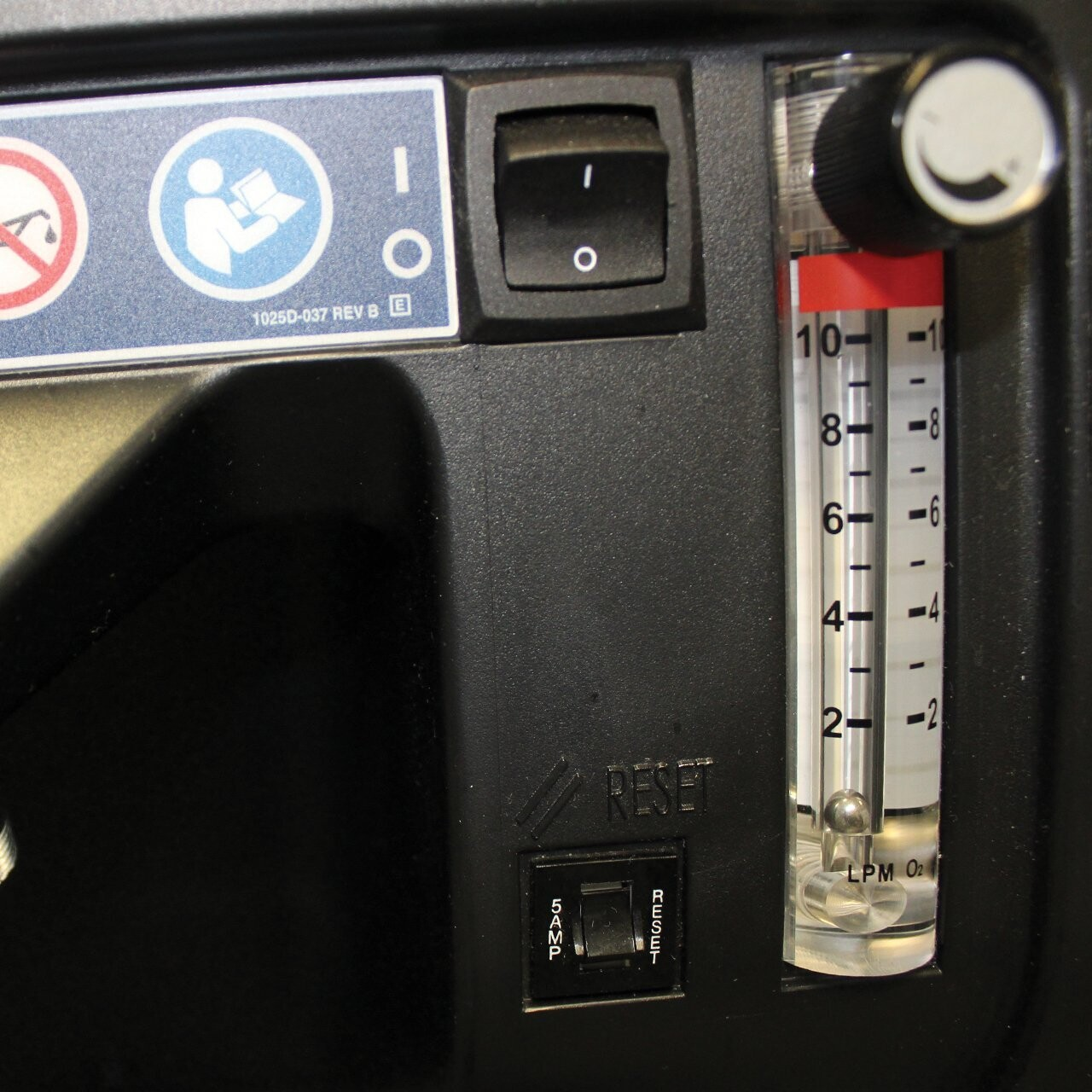

- Circuit breaker with reset function
- Easy to view hour meter
- Clear design for easy use
- Lightweight and compact: weighing just 19 kilograms
- Digital hour meter - easy to read on the top of the device
- Convenient top and side handles for easy transport
- OSD® sensor for continuously monitoring oxygen levels
- Reliable safety features
- Oxygen outlet incorporating a fire protection adapter
- Tested in high temperature and high humidity for extended periods of time
- Alarms do not require a battery and indicate power failure, high gas temperature, high pressure, low and high flow, low oxygen, and service required
- Visual and audible alarms for low Oxygen levels, power failure, pressure drop and service required / Front label with clear visible LEDs and easy to read pictograms
- Can easily incorporate a compatible transfill system, via the auxiliary oxygen port and compatible Transfill Caddy multi purpose use:
- Manufacturing process using oxygen concentrator (by selectively removing nitrogen to supply an oxygen-enriched product gas stream). The need for an Oxygen tank is not compulsory for this process.
- Hyperbaric O2
- Medicial (Drive DeVilbiss Healthcare Limited) :
| TECHNICAL PROPERTIES Unit |
Nominal Value |
| Dimension (H x W x D)
"cm" |
62.2 x 34.2 x 30.4 |
| Weight
Lbs |
42 |
| Maximum noise level
dbA |
57 |
| Flowrate
Litre per minute (l / min) |
2 - 10 |
| Oxygen Concentration
percentage |
at 0.5 - 5 l / min 93% +- 3 % |
| Outlet Pressure psi |
20 +- 1 |
| Electrical Requirements volt, Hz, amps |
230 V, 50 Hz, 3.2 A |
| Power Consumption Watt |
~ 639 |
| Classification category |
II Type B |
The Supplier warrants that on delivery, and for a period of 6 (six) months from
the date of delivery or for any other period specifically agreed in writing between the Supplier and the Customer (warranty period), the Goods shall :
(a) conform in all material respects with their description
(b) be free from material defects in design, material and workmanship
(c) be of satisfactory quality (within the meaning of the Sale of Goods Act 1979)
(d) be fit for any purpose held out by the Supplier.
| PRODUCT CODE |
DESCRIPTION |
PRICE Ex VAT |
VAT |
PRICE Inc VAT |
| 1025UK
|
10 litre oxygen concentrator |
£ 980.00 |
£ 196.00 |
£ 1176.00 |
|
|
